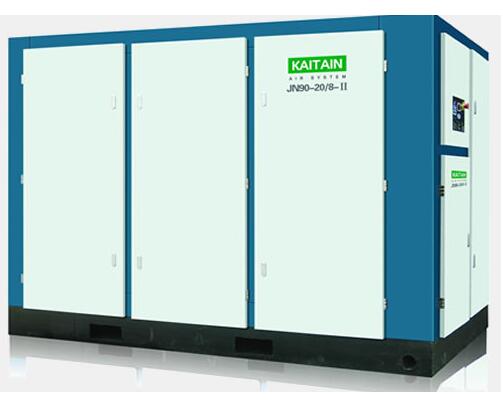

型号：JN
排气量：15~70m3/min
排气压力：0.45~1.3Mpa
电机功率：75~250kw
重量：3400~9260kg
JN二级压缩系列螺杆空压机参数
| 产品型号 | 排气压力（Mpa) | 排气量(m3/min) | 电机功率(KW) | 排气接口 | 噪声dB(A) | 重量(KG) | 外形尺寸(MM) | 变频机组重量（kg） | 变频机组外型尺寸(MM) |
| JN75-18/6-Ⅱ | 0.6 | 18 | 75 | DN65 | 73 | 3400 | 2860x1780x2020 | 3500 | 3110x1780x2020 |
| JN75-18/7-Ⅱ | 0.7 | 18 | |||||||
| JN75-16/8-Ⅱ | 0.8 | 16 | |||||||
| JN90-23/6-Ⅱ | 0.6 | 23 | 90 | DN65 | 73 | 3500 | 2860x1780x2020 | 3600 | 3110x1780x2020 |
| JN90-21/7-Ⅱ | 0.7 | 21 | |||||||
| JN90-20/8-Ⅱ | 0.8 | 19.5 | |||||||
| JN90-17/10-Ⅱ | 1 | 16.5 | |||||||
| JN90-15/13-Ⅱ | 1.3 | 15 | |||||||
| JN110-26/6-Ⅱ | 0.6 | 26 | 110 | DN65 | 74 | 4350 | 2860x1890x2060 | 4450 | 3100x1890x2060 |
| JN110-26/7-Ⅱ | 0.7 | 26 | |||||||
| JN110-24/8-Ⅱ | 0.8 | 24 | |||||||
| JN110-19.5/10-Ⅱ | 1 | 19.5 | |||||||
| JN110-18/13-Ⅱ | 1.3 | 18 | |||||||
| JN132-34/6-Ⅱ | 0.6 | 34 | 132 | DN80 | 75 | 5100 | 3200x1930x2260 | 5100 | 3440x1930x2260 |
| JN132-32/7-Ⅱ | 0.7 | 32 | |||||||
| JN132-28/8-Ⅱ | 0.8 | 28 | DN65 | 75 | 4450 | 2860x1890x2060 | 4550 | 3100x1890x2060 | |
| JN132-24/10-Ⅱ | 1 | 24 | |||||||
| JN132-21/13-Ⅱ | 1.3 | 21 | |||||||
| JN160-40/6-Ⅱ | 0.6 | 40 | 160 | DN80 | 76 | 6000 | 3660x2060x2280 | 6100 | 3770x2060x2280 |
| JN160-38/7-Ⅱ | 0.7 | 38 | |||||||
| JN160-33/8-Ⅱ | 0.8 | 33 | |||||||
| JN160-31/10-Ⅱ | 1 | 31 | |||||||
| JN160-27/13-Ⅱ | 1.3 | 27 | |||||||
| JN185-44/6-Ⅱ | 0.6 | 44 | 185 | DN100 | 77 | 6300 | 3660x2060x2280 | 6400 | 3770x2060x2280 |
| JN185-42/7-Ⅱ | 0.7 | 42 | DN80 | 6100 | 3660x2060x2280 | 6200 | 3770x2060x2280 | ||
| JN185-38/8-Ⅱ | 0.8 | 38 | |||||||
| JN185-34/10-Ⅱ | 1 | 34 | |||||||
| JN185-31/13-Ⅱ | 1.3 | 31 | |||||||
| JN200-48/6-Ⅱ | 0.6 | 48 | 200 | DN100 | 77 | 6350 | 3660x2060x2280 | 6450 | 3770x2060x2280 |
| JN200-46/7-Ⅱ | 0.7 | 46 | |||||||
| JN200-41/8-Ⅱ | 0.8 | 41 | DN80 | 6200 | 3660x2060x2280 | 6300 | 3660x2060x2280 | ||
| JN200-40/10-Ⅱ | 1 | 40 | |||||||
| JN200-33/13-Ⅱ | 1.3 | 33 | |||||||
| JN220-55/6-Ⅱ | 0.6 | 55 | 220 | DN100 | 79 | 8800 | 4160x2260x2350 | 8920 | 4160x2260x2350 |
| JN220-53/7-Ⅱ | 0.7 | 53 | |||||||
| JN220-47/8-Ⅱ | 0.8 | 47 | |||||||
| JN220-43/10-Ⅱ | 1 | 43 | |||||||
| JN220-38/13-Ⅱ | 1.3 | 37.8 | |||||||
| JN250-60/6-Ⅱ | 0.6 | 60 | 250 | DN125 | 79 | 9300 | 4160x2410x2350 | 9420 | 4260x2410x2350 |
| JN250-57/7-Ⅱ | 0.7 | 57 | |||||||
| JN250-54/8-Ⅱ | 0.8 | 54 | DN100 | 79 | 9100 | 4160x2260x2350 | 9220 | 4160x2260x2350 | |
| JN250-47/10-Ⅱ | 1 | 47 | |||||||
| JN250-42/13-Ⅱ | 1.3 | 42 | |||||||
| JN280-67/6-Ⅱ | 0.6 | 67 | 280 | DN125 | 82 | 8500 | 3530x2280x2270 | 8650 | 3530x2280x2360 |
| JN280-63/7-Ⅱ | 0.7 | 63 | |||||||
| JN280-60/8-Ⅱ | 0.8 | 59.8 | |||||||
| JN280-54/10-Ⅱ | 1 | 53.7 | |||||||
| JN280-46/13-Ⅱ | 1.3 | 46 | |||||||
| JN315-70/8-Ⅱ | 0.8 | 70 | 315 | DN125 | 82 | 8600 | 3530x2280x2270 | 8750 | 3530x2280x2360 |
| JN315-62/10-Ⅱ | 1 | 62 | |||||||
| JN315-56/13-Ⅱ | 1.3 | 56 | |||||||
| JN355-70/10-Ⅱ | 1 | 69.2 | 355 | DN125 | 82 | 8700 | 3530x2280x2270 | 8900 | 3530x2280x2360 |
| JN355-62/13-Ⅱ | 1.3 | 62 | |||||||
| JN75-21/4.5-II | 0.45 | 21.2 | 75 | DN80 | 72 | 3300 | 2920×1840×2020 | 3350 | 3160×1840×2020 |
| JN90-26/4.5-II | 0.45 | 25.8 | 90 | DN80 | 72 | 3740 | 2920×1840×2020 | 3800 | 3160×1840×2020 |
| JN110-32/4.5-II | 0.45 | 32.4 | 110 | DN100 | 73 | 5100 | 3360×2010×2100 | 5150 | 3560×2010×2100 |
| JN132-39/4.5-II | 0.45 | 39.2 | 132 | DN100 | 73 | 5200 | 3360×2010×2100 | 5250 | 3560×2010×2100 |
| JN160-45/4.5-II | 0.45 | 44.8 | 160 | DN100 | 75 | 5900 | 3660X2060X2170 | 5950 | 3660X2060X2170 |
| JN185-49/4.5-II | 0.45 | 48.6 | 185 | DN100 | 76 | 6100 | 3660X2060X2170 | 6000 | 3660X2060X2170 |
| JN200-54/4.5-II | 0.45 | 54.4 | 200 | DN125 | 76 | 8000 | 3960×2260×2350 | 660 | 3960×2260×2350 |
| JN220-61/4.5-II | 0.45 | 60.7 | 220 | DN150 | 78 | 9000 | 4260×2350×2350 | 9000 | 4260×2410×2350 |
| JN250-69/4.5-II | 0.45 | 68.7 | 250 | DN150 | 78 | 9260 | 4260×2350×2350 | 9250 | 4260×2410×2350 |
